ROHS Compliant Flame Proof Flat Wire Wound Fixed Resistors RGJ Series 20W-340W

Brand Name : JDC

Model Number : RGJ

Certification : ROHS&Reach

Place of Origin : CHINA

MOQ : 100PCS

Price : $1.5-$5.5

Payment Terms : T/T, L/C

Supply Ability : 100,000 PCS

Delivery Time : 2 weeks

Packaging Details : Bulk in Carton

Rated Power : 20W-340W

Resistance Range : 0.1R -50KR

Resistance Tolerance : ±1%，±2%，±5%

TCR : ±200ppm/℃ ~ 400ppm/℃

Lead time : 14 Days

Application : Educational modeling

Contact Now

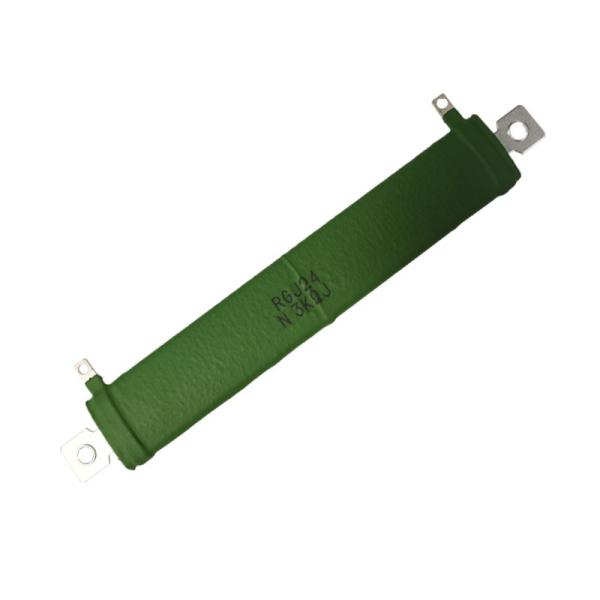

Flame Proof Flat Wire Wound Fixed Resistors RGJ Series

Construction :

RGJ series resistor is a flat tubular ceramic rod has two terminals and is wirewound with either copper wire or chromium alloy wire as a resistance element.
Mainly utilized for industrial installations where height is limited. Features excellent windings, taps adding, low impedance, and PC board insertable.

Application:

Educational modeling applications
Load testing, industrial machinery
Electric power distribution
Instruments
Automation control installations

Characteristics:

Test items

Test method

Specified value

Resistance

temperature charact

Normal – 125°C

<20Ω:±400ppm/℃

≧20Ω±260ppm/℃

Short-time overload

10 x rated power for 5 sec.

±(2%+0.05Ω)

Insulation resistance

DC 500V megger

20MΩ or higher

Withstanding voltage

AC1000V for single

±(0.1%+0.05Ω)

No breakdown

Terminal strength

44N for 30 sec.

No mechanical damage

Moisture load life

40°C 90-95%

1/10 x rated power for 500 hrs.

±(3%+0.05Ω)

Rated load

Rated voltage for 30 min.

350°C or lower

±(0.5%+0.05Ω)

Load life

Rated power for 500 hrs.

1.5 hrs. ON – 0.5 hrs OFF

±(5%+0.05Ω)

Heat resistance

350°C for 2 hrs.

No mechanical damage

Thermal shock

Rated power for 30 min.

-55°C for 15 min.

±(2%+0.05Ω)
